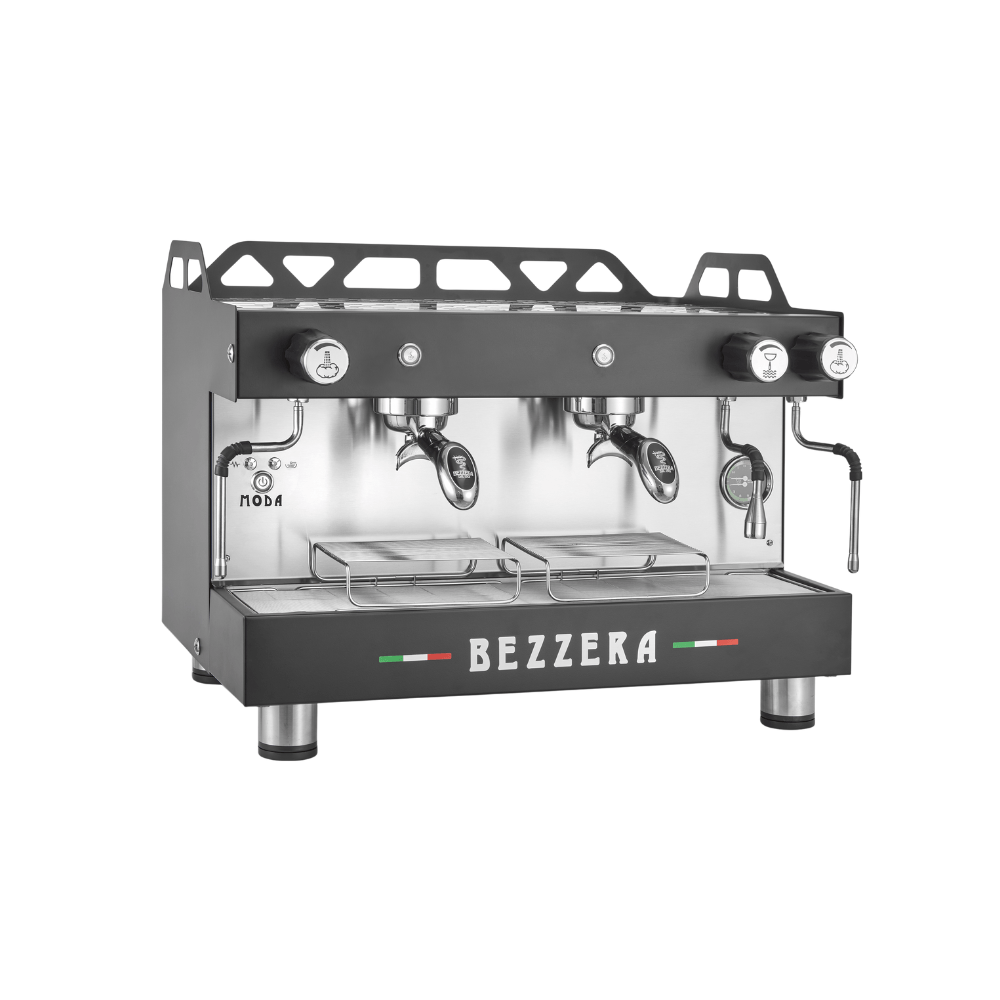

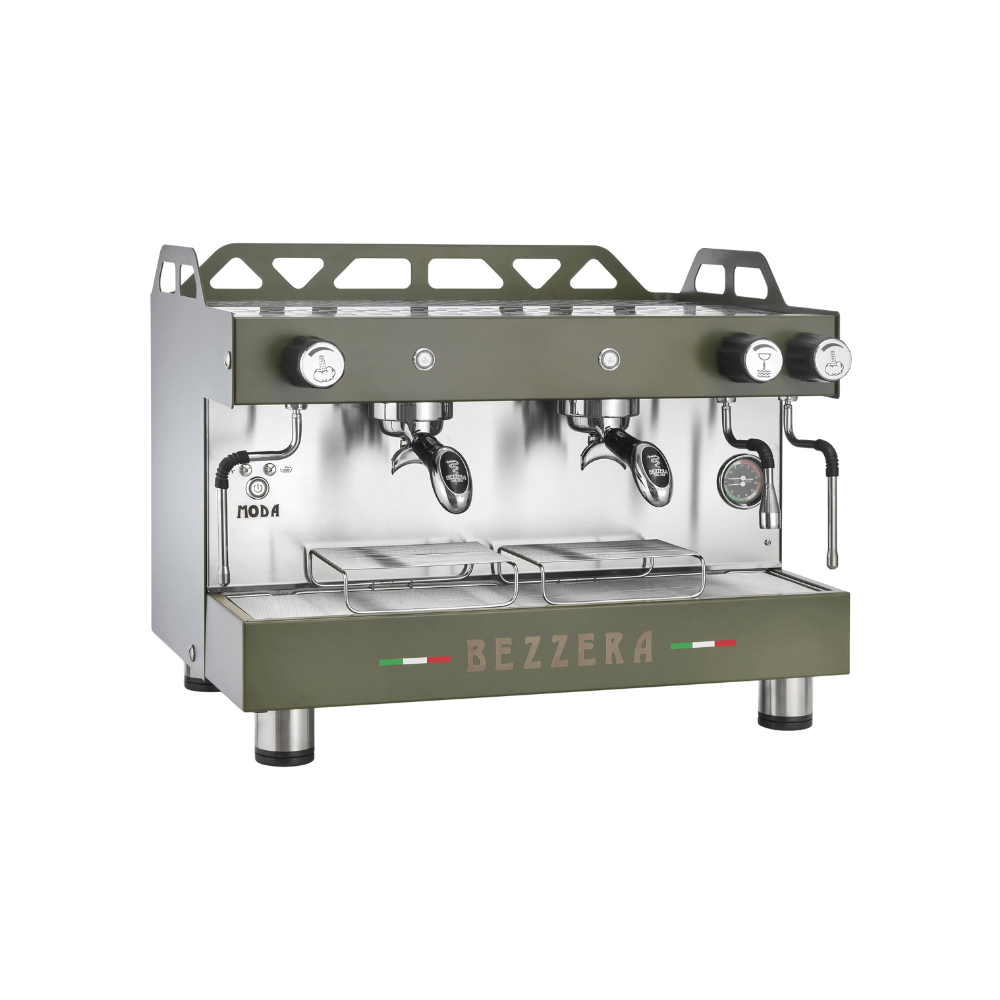

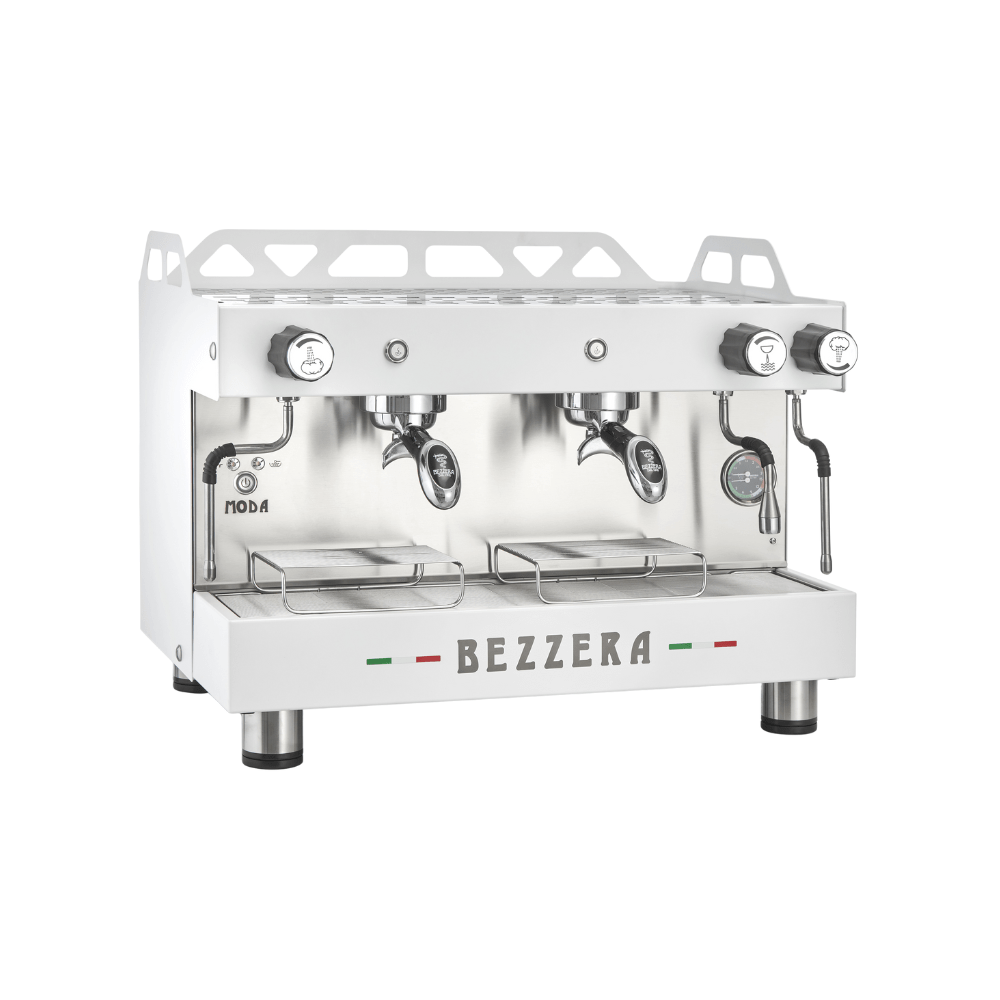

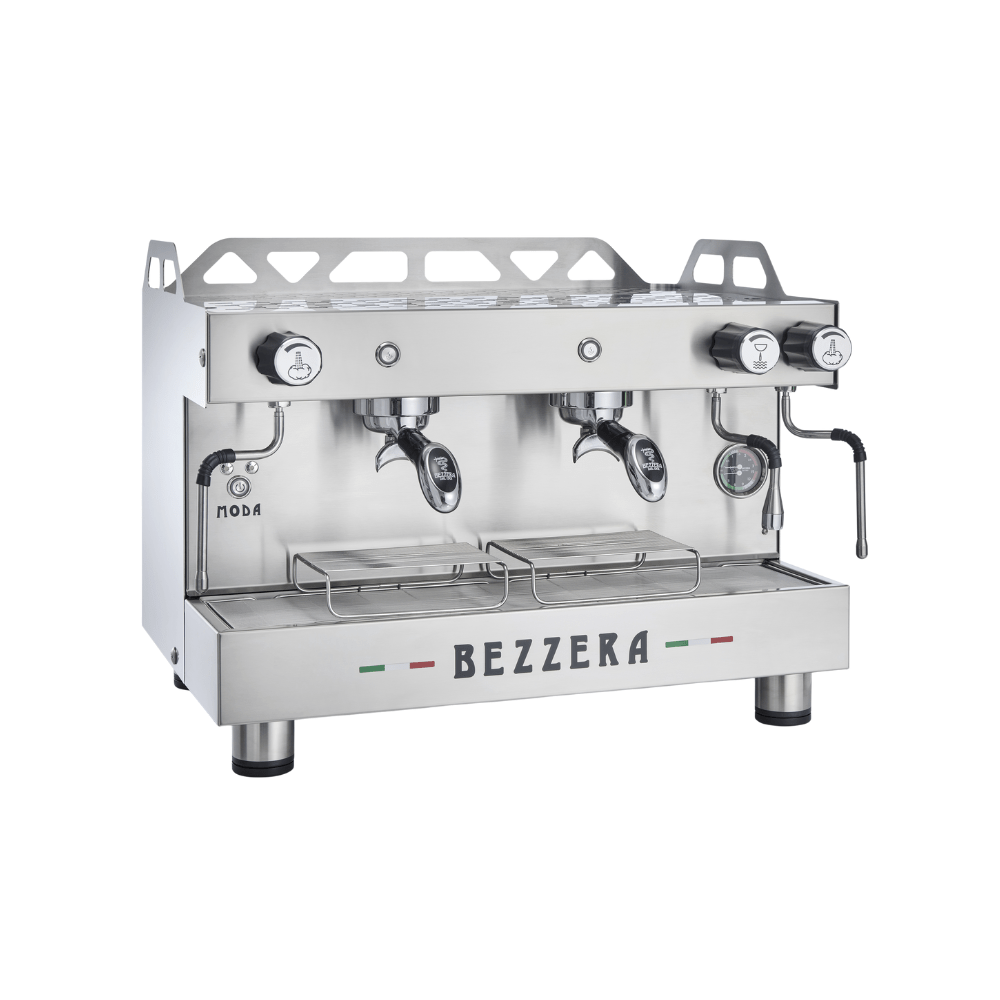

MODA PM 2GR

Ho.Re.Ca.
Automatic dosage,
Direct connection,
Heating exchanger,
Manual dosage
GROUPS
1 GR, 2 GR, 3 GR

Description

MODA

The new MODA espresso coffee machines range resumes main BEZZERA’s distinctive marks: reliability, robustness, versatility.

RELIABILITY: a selection of top quality components grants the performances in all working conditions.

ROBUSTNESS: MODA body is made of stainless steel AISI 304 (14301).

VERSATILITY: the large working area and the special grids allow to use up to 13 cm high cups.

MODA PM: In PM semi-automatic version, coffee dosing is operated by an on/off push button which activates the pump and a solenoid valve to start the coffee flow.

TECHNICAL FEATURES:

  • HEAT EXCHANGE: Operated with an hydraulic circuit separated from the boiler, coffee is always prepared with fresh water.
  • THERMOSTATICALLY CONTROLLED GROUP: The 100W electrical resistance keeps the group temperature stable, even under heavy duty conditions.
  • INSULATED COPPER BOILER: Enables the optimum steam and hot water productivity; levels are automatically managed by a control box.
  • SAFETY: Double safety system, guaranteed by the boiler high temperature cut-off thermostat and the hydraulic overpressure valve.
1GR 2GR 3GR
Power Supply (V~/Hz) 110 – 120 / 50-60Hz
Resistance (W) 1400 2600 3000
Nominal Power (W) 1700 3050 3600
Power Supply (V~/Hz) 230V / 50-60 Hz                 220 – 415 / 50-60 Hz
Resistance (W) 2025 5020 5020
Power Supply (W) 2300 5500 5600
Boiler (l) 5 11 17
Width (mm) 487 667 877
Depth (mm) 495 495 495
Height (mm) 520 520 520
Net Weight  (kg) 45 59 74
Gross Weight (kg) 55 71 87
Load Connection G 3/8″
Drain Connection G 3/4″

» Dépliant

» Spare parts
